Tooling Prepreg
-
![]()
SCT55
Type: Epoxy Tooling
Bio resin content: 0%
Initial cure Temp: 40 to 80°C
Minimum cure: 3 to 18 Hrs
Post-cure option: Recommended
Outlife at 18°C: 75 hours
Cure: Autoclave
Attributes: Low-temperature-cure, medium tack, excellent surface finish
-
![]()
SCT75
Type: Epoxy Tooling
Bio resin content: 0%
Initial cure Temp: 50 to 75°C
Minimium cure: 2.5 to 18 Hrs
Post-cure option: Recommended
Outlife at 18°C: 5 days
Cure: Autoclave
Attributes: Low to medium-temperature cure, medium tack, excellent surface finish
Tooling material is available in roll lengths of 5, 10 and 20 meters at 1m and 1.25m widths, or cut into squares.

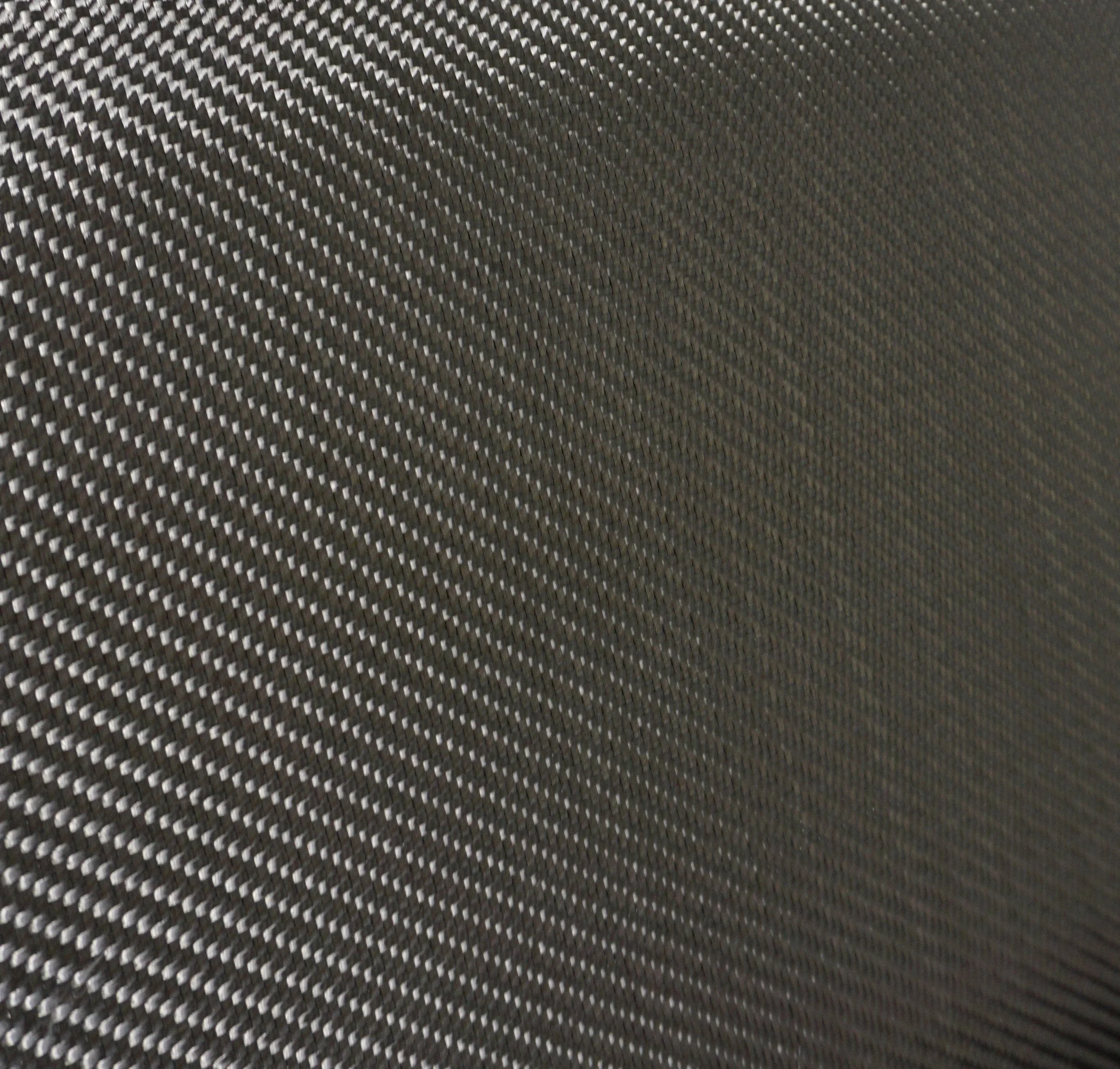

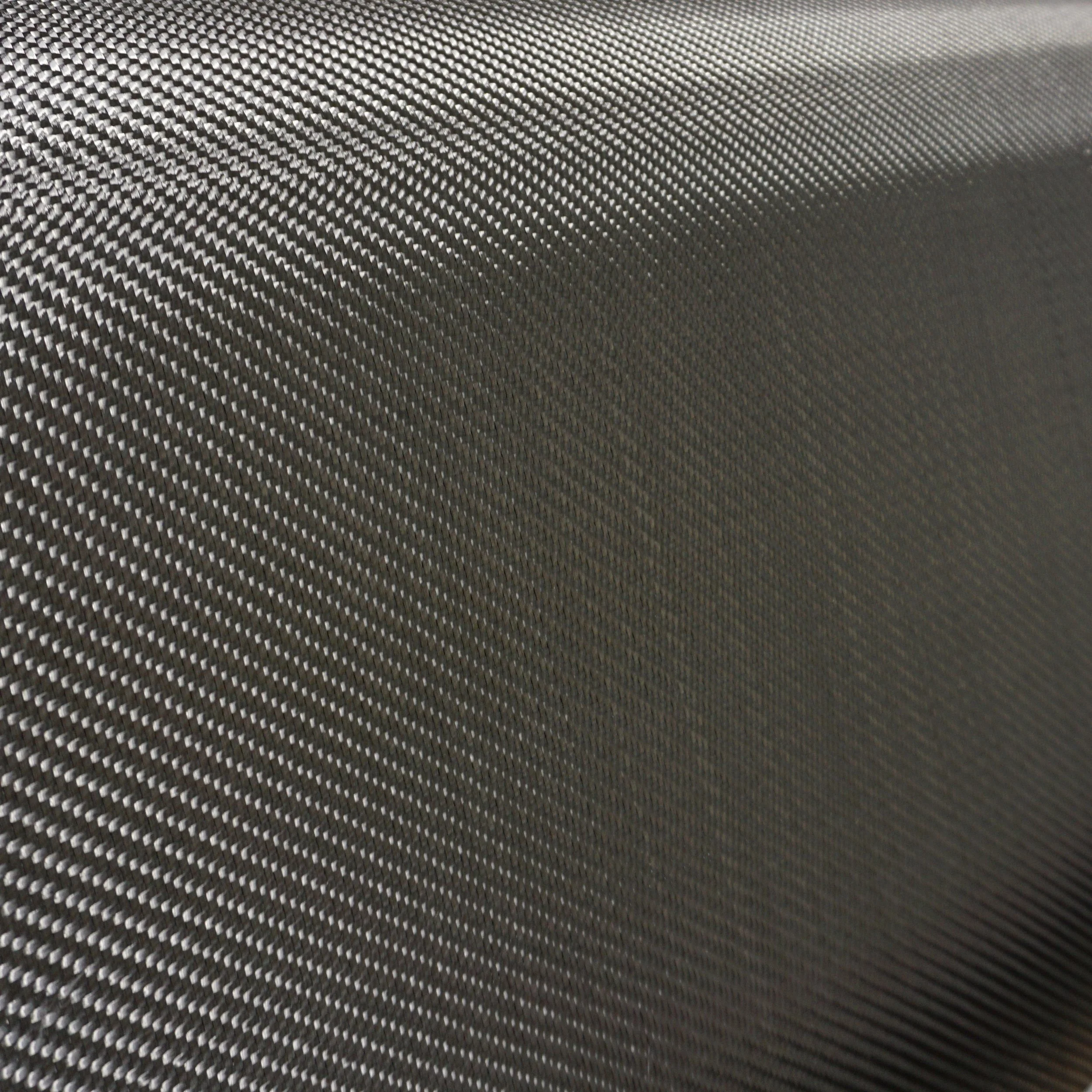

Typically, 650gsm 2x2 twill carbon fibre is recommended as a bulking ply for the manufacture of carbon fibre composite mould tools, in conjunction with 200gsm 2x2 twill, to create mould tools in a 1:8:1 layup.
